YETI SB115

Kontakt os for lagerstatus på thomas@trailsurfers.dk

Varenummer (SKU): N/A Kategori: Trail Surfers Selected Tags: YETI ARC, YETI cykler, YETI Mountainbike

IT’S TIME TO RECALIBRATE YOUR GRAY MATTER WITH WHAT’S HAPPENING IN RACING TODAY. ALL IT TAKES IS “IT’S ON!” – NUMBER PLATES NOT REQUIRED. BORN TO NATURALLY CRUSH THE CLIMBS, THE SB115 IS EVOLVED. DEFT ON THE DOWNS. DESIGNED TO RACE. BUILT TO RALLY.

DETAILS	T3, TURQ series carbon, SRAM XX1 Eagle, Fox Factory 34 Fork	T2, TURQ series carbon, SRAM X01 Eagle, Fox Factory 34 Fork	T1, TURQ series carbon, Shimano XT, Fox Factory 34 Fork	C2, C series carbon, SRAM GX Eagle, Fox Performance 34 Fork	C1, C series carbon, Shimano SLX, Fox Performance 34 Fork	TURQ series carbon

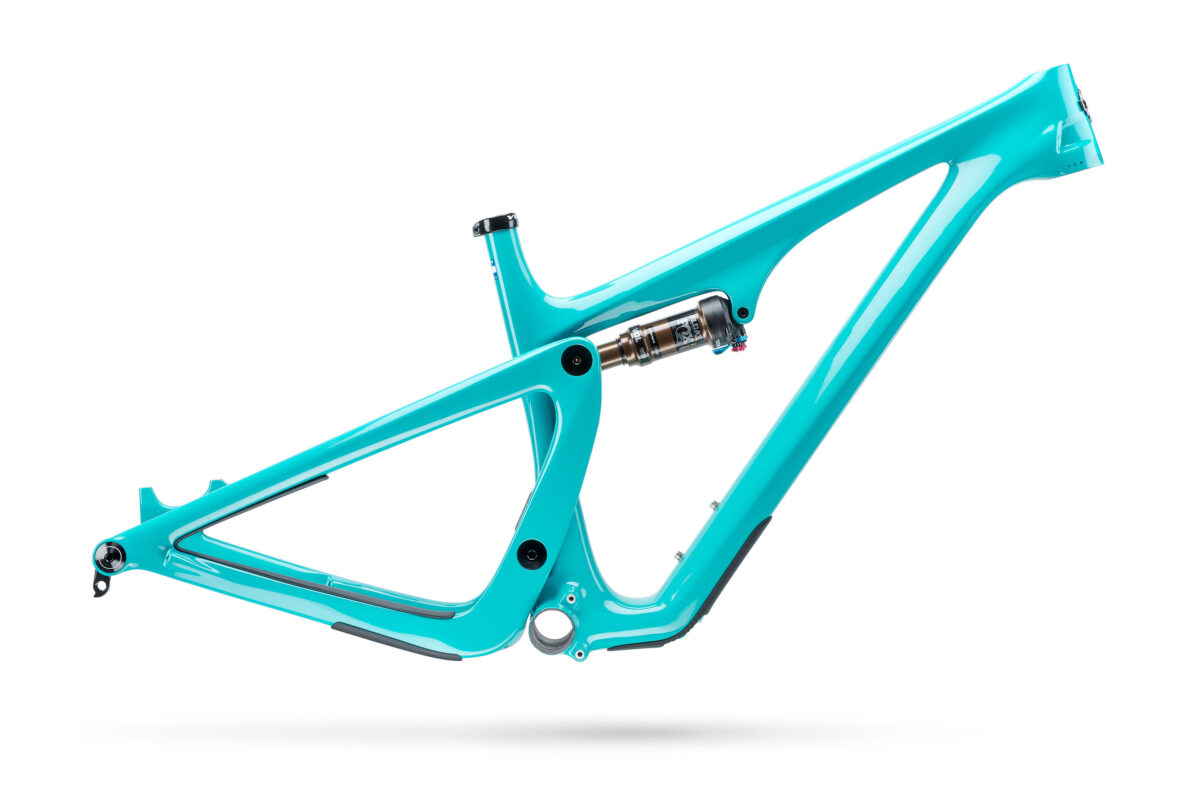

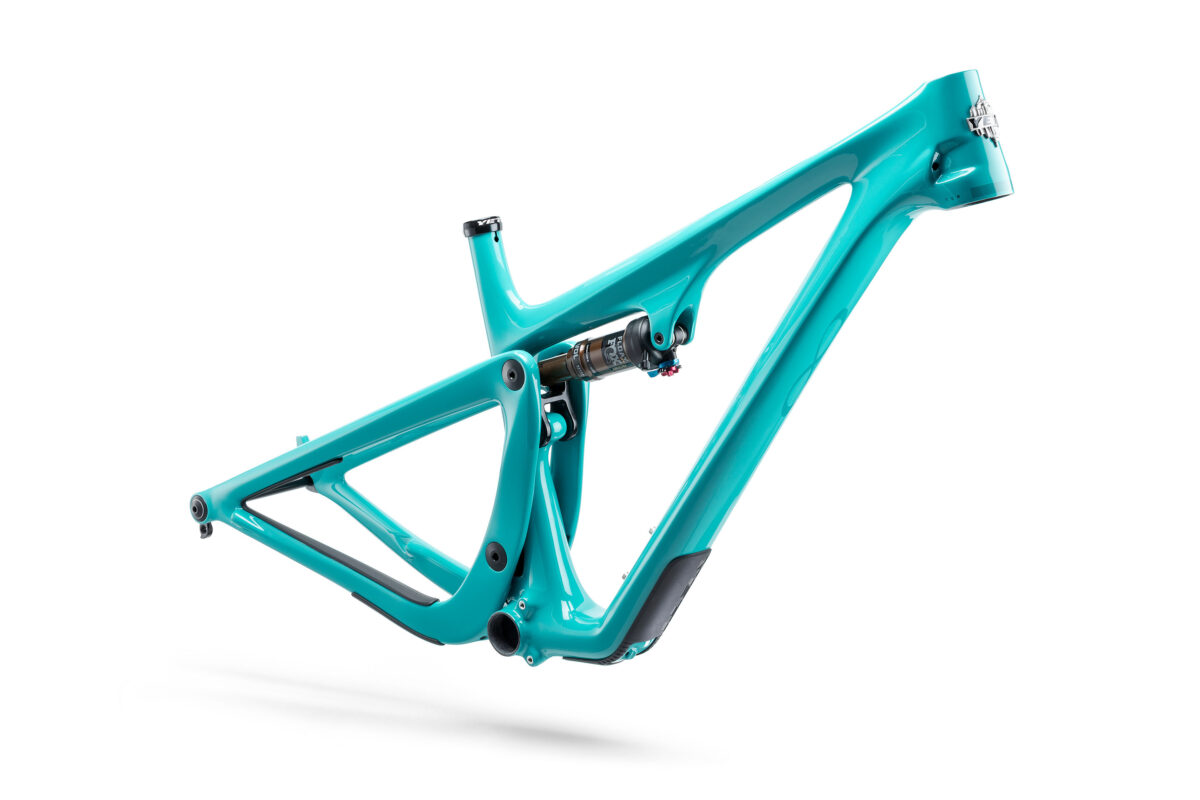

FRAME	TURQ Series carbon fiber frame, Switch Infinity suspension technology, press-fit BB92, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, integrated derailleur hanger, and axle.	TURQ Series carbon fiber frame, Switch Infinity suspension technology, press-fit BB92, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, integrated derailleur hanger, and axle.	TURQ Series carbon fiber frame, Switch Infinity suspension technology, press-fit BB92, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, integrated derailleur hanger, and axle.	C/Series carbon fiber frame, Switch Infinity suspension technology, press-fit BB92, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, integrated derailleur hanger, and axle.	C/Series carbon fiber frame, Switch Infinity suspension technology, press-fit BB92, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, integrated derailleur hanger, and axle.	TURQ Series carbon fiber frame, Switch Infinity suspension technology, press-fit BB92, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, integrated derailleur hanger, and axle.
FORK	FOX FACTORY 34/130MM	FOX FACTORY 34/130MM	FOX FACTORY 34/130MM	FOX PERFORMANCE 34/130MM	FOX PERFORMANCE 34/130MM
MATERIAL	TURQ SERIES	TURQ SERIES	TURQ SERIES	C/SERIES	C/SERIES	TURQ SERIES
WEIGHT	27.38 LBS	27.6 LBS	28.1 LBS	29.63 LBS	29.76 LBS	5.89 LBS
TRAVEL	115MM (4.5″)	115MM (4.5″)	115MM (4.5″)	115MM (4.5″)	115MM (4.5″)	115MM (4.5″)
REAR SHOCK	FOX FACTORY DPS 190 X 45MM	FOX FACTORY DPS 190 X 45MM	FOX FACTORY DPS 190 X 45MM	FOX PERFORMANCE DPS 190 X 45MM	FOX PERFORMANCE DPS 190 X 45MM	FOX FACTORY DPS 190 X 45MM
WHEELSET	DT SWISS XM1700 30MM	DT SWISS XM1700 30MM	DT SWISS XM1700 30MM	DT SWISS M1900 30MM	DT SWISS M1900 30MM
REAR DER	SRAM XX1 EAGLE	SRAM X01 EAGLE	SHIMANO XT	SRAM GX EAGLE	SHIMANO SLX
SHIFT	SRAM XX1 EAGLE	SRAM X01 EAGLE	SHIMANO XT	SRAM GX EAGLE	SHIMANO SLX
CRANK	SRAM X01 EAGLE 30T 170MM	SRAM X1 EAGLE 30T 170MM	SHIMANO XT 30T 170MM	SRAM GX EAGLE 30T 170MM	SHIMANO SLX 30T 170MM
BB	SRAM DUB BB92	SRAM DUB BB92	SHIMANO XT BB92	SRAM DUB BB92	SHIMANO XT BB92
CASSETTE	SRAM XX1 EAGLE 1299 10-52	SRAM X01 EAGLE 1295 10-52	SHIMANO XT 10-51	SRAM GX EAGLE 1275 10-52	SHIMANO SLX 10-51
CHAIN	SRAM XX1 EAGLE	SRAM GX EAGLE	SHIMANO XT	SRAM GX EAGLE	SHIMANO SLX
BRAKES	SRAM G2 ULTIMATE	SRAM G2 RSC	SHIMANO XT 4 PISTON	SRAM G2 R	SHIMANO DEORE 4 PISTON
ROTORS	SRAM CENTERLINE 180/SRAM CENTERLINE 180	SRAM CENTERLINE 180/SRAM CENTERLINE 180	SHIMANO 180/SHIMANO 180	SRAM CENTERLINE 180/SRAM CENTERLINE 180	SHIMANO 180/SHIMANO 180
POST	FOX TRANSFER FACTORY 30.9MM / SM: 125MM, MD: 150MM, LG-XL: 175MM	FOX TRANSFER 30.9MM / SM: 125MM, MD: 150MM, LG-XL: 175MM	FOX TRANSFER 30.9MM / SM: 125MM, MD: 150MM, LG-XL: 175MM	FOX TRANSFER 30.9MM / SM: 125MM, MD: 150MM, LG-XL: 175MM	FOX TRANSFER 30.9MM / SM: 125MM, MD: 150MM, LG-XL: 175MM
FRONT TIRE	MAXXIS MINION DHF 2.5 EXO	MAXXIS MINION DHF 2.5 EXO	MAXXIS MINION DHF 2.5 EXO	MAXXIS MINION DHF 2.5 EXO	MAXXIS MINION DHF 2.5 EXO
REAR TIRE	MAXXIS AGGRESSOR 2.3 EXO	MAXXIS AGGRESSOR 2.3 EXO	MAXXIS AGGRESSOR 2.3 EXO	MAXXIS AGGRESSOR 2.3 EXO	MAXXIS AGGRESSOR 2.3 EXO
HEADSET	CANE CREEK 110 INTEGRATED	CANE CREEK 40 INTEGRATED	CANE CREEK 40 INTEGRATED	CANE CREEK 40 INTEGRATED	CANE CREEK 40 INTEGRATED
BAR	YETI CARBON 35X780MM	YETI CARBON 35X780MM	YETI CARBON 35X780MM	RACE FACE AEFFECT R 35X780MM	RACE FACE AFFECT R 35X780MM
STEM	RACE FACE TURBINE BASIC 35X50MM	RACE FACE TURBINE BASIC 35X50MM	RACE FACE TURBINE BASIC 35X50MM	RACE FACE RIDE 35X50MM	RACE FACE RIDE 35X50MM
GRIPS	ODI ELITE PRO	ODI ELITE PRO	ODI ELITE PRO	ODI ELITE PRO	ODI ELITE PRO
SEAT	ERGON SADDLE	WTB CUSTOM	WTB CUSTOM	WTB CUSTOM	WTB CUSTOM

GEOMETRY

IN MM

		SM	MD	LG	XL
A	SEAT TUBE LENGTH	393.0	419.0	457.0	495.0
B	TOPTUBE LENGTH	577.3	605.7	630.9	657.8
C	HEADTUBE ANGLE	67.6	67.6	67.6	67.6
D	EFF. SEAT TUBE ANGLE	74.1	74.1	74.0	73.9
E	CHAINSTAY LENGTH	436.7	436.7	436.7	436.7
F	WHEELBASE	1125.5	1154.5	1180.6	1208.6
G	ESTIMATED BB HEIGHT	339.5	339.4	339.3	339.2
H	STANDOVER	731.8	731.1	731.3	732.1
I	HEADTUBE LENGTH	92.6	107.0	123.2	144.7
J	AXLE TO CROWN	540.0	540.0	540.0	540.0
K	OFFSET	44.0	44.0	44.0	44.0
L	STACK	603.0	613.1	628.2	648.3
M	REACH	405.5	430.6	450.6	470.5
N	FRONT CENTER	688.8	717.8	743.9	771.9
O	VERTICAL FORK TRAVEL	120.2	120.2	120.2	120.2

SB100 Geo
FIT GUIDE

SMALL

155 cm – 169 cm
MEDIUM

165 cm – 180 cm
LARGE

178 cm – 191 cm
X-LARGE

185 cm – 201 cm

Kit & Frame	SB115 C1 – Factory Suspension, SB115 C1 Performance Suspension, SB115 C2 – Factory Suspension, SB115 C2 AXS, SB115 C2 AXS – Factory, SB115 C2 Performance Suspension, SB115 T1, SB115 T1 W/Carbon Wheels, SB115 T2, SB115 T2 (both upgrades), SB115 T2 AXS, SB115 T2 W/Carbon Wheels, SB115 T3, SB115 T3 (both upgrades), SB115 T3 AXS, SB115 T3 W/Carbon Wheels
Størrelse	LARGE 178 cm – 191 cm, MEDIUM 165 cm – 180 cm, SMALL 155 cm – 169 cm, X-LARGE 185 cm – 201 cm
Farve	Anthracite, Bianco, Turq
